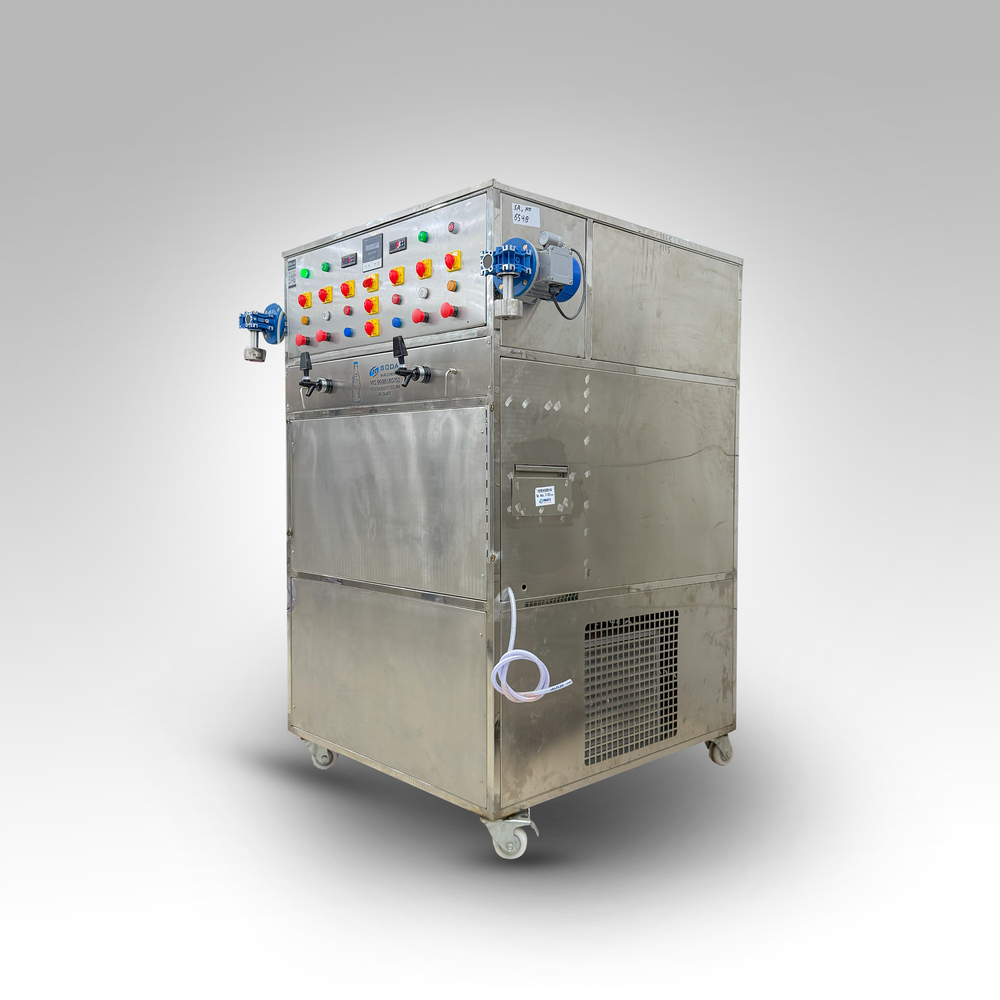

1+3 Soda Bottling PLANT SOFTWARE

Machine Specifications

• Filling Heads:

  • 1 Soda Filling Head
  • 2 Syrup Filling Heads
  • 1 Water Filling Head

• Production Capacity:

  • 3,0003,500 Bottles per Day (200 ml bottles)

• Material:

  • Fully 304 Stainless Steel

• System Features:

  • Digital Software-Based Programming System
  • Single Carbonator System
  • 2-in-1 Filling Function (Carbonated & Non-Carbonated)
  • Semi-Automatic Operation
  • Bottle Filling Range: 200 ml to 2.25 liters

• Additional Components:

  • Capping Machine
  • Heavy-Duty Regulator
  • Chiller Compressor (Emersion Kirloskar, 1 Ton) with Advanced Power-Saving Technology
  • Water Cooling System Included
  • 250-Liter Chiller Tank

• Power Specifications:

  • Single Phase
  • Power: 1,840 Watt, 220 Volt

• Dimensions & Weight:

  • Dimensions (L x W x H): 32 x 48 x 69 inches
  • Net Weight: 170 kg
  • Gross Weight: 410 kg (approx.)

• Key Features:

  • Easy to Operate
